IQView Document Camera E3511

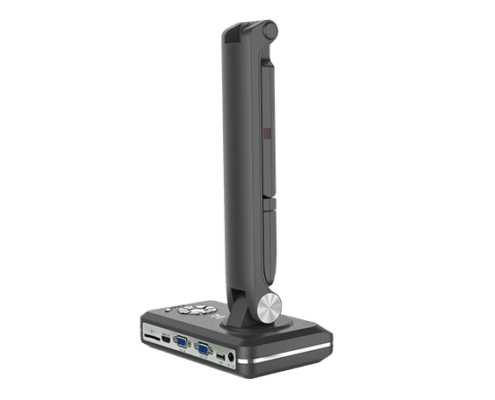

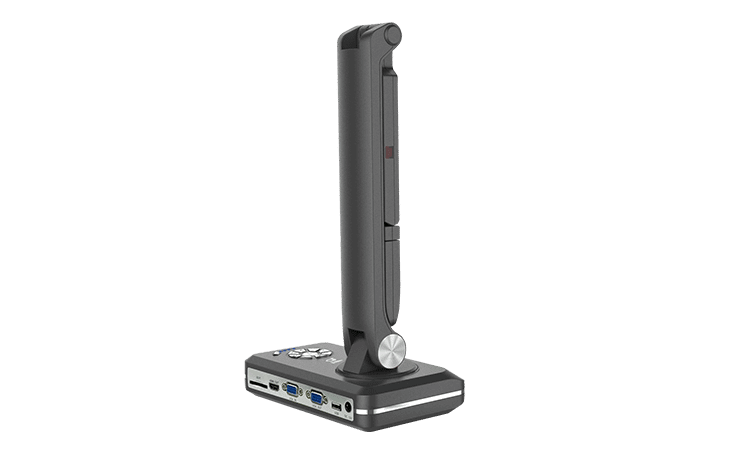

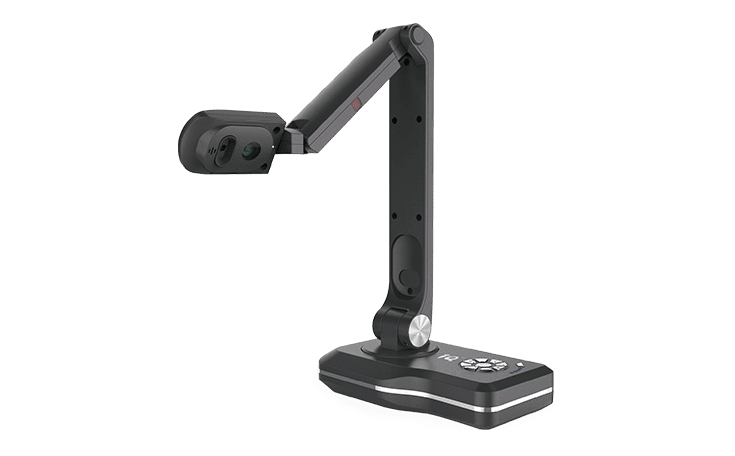

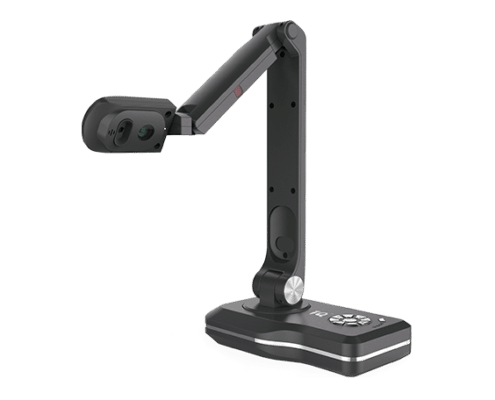

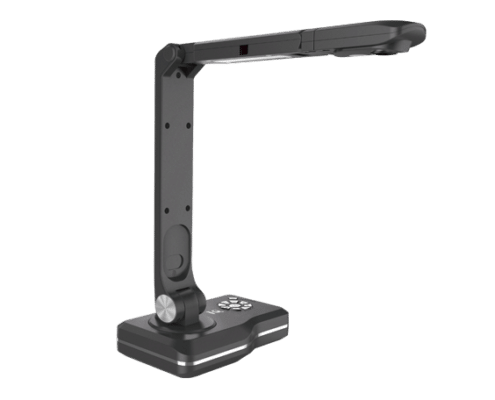

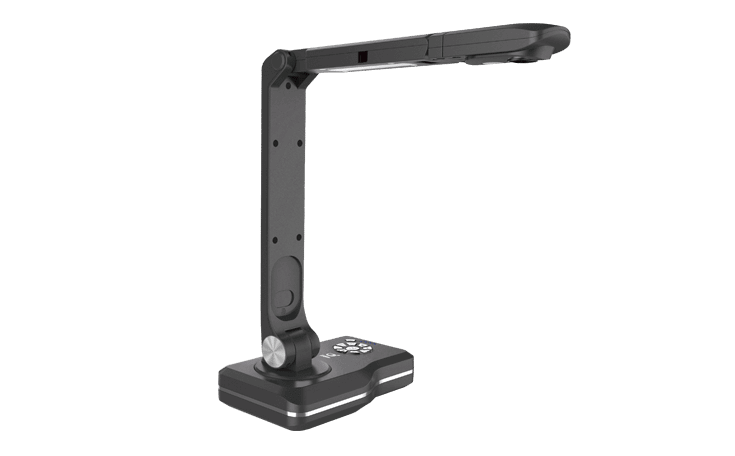

IQView Document Camera E3511

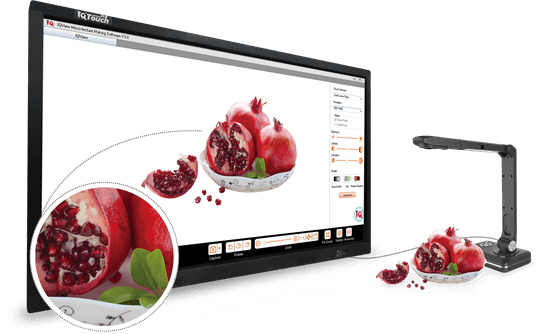

Interactive Document Camera is a completely new concept design and mobile visualizer. The touch capability on IQTouch and IQBoard, IQView E3511 Document Camera can be freely used for presentations anywhere in or out of the classroom or office.

Feature Specifications Resource

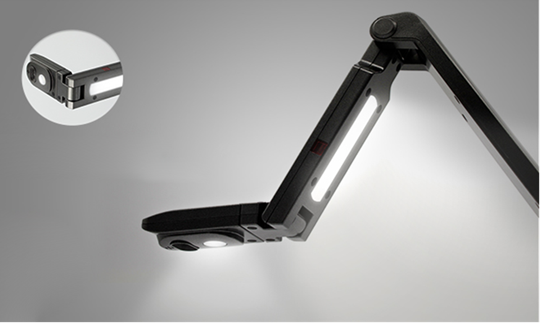

led document camera

11 LEDs under glare-resistant panel Five-level adjustable brightness Energy conservation and ample brightness

5.0MP document camera

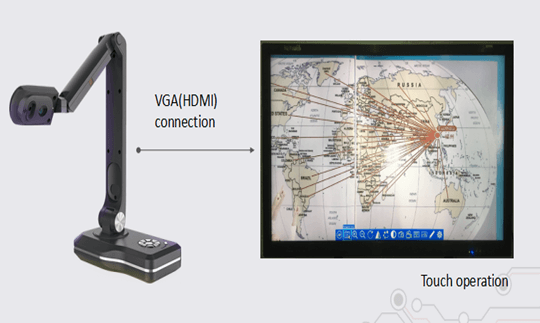

PC-Less: Direct connect to monitor and projector through HDMI and VGA interfaces.

document camera software

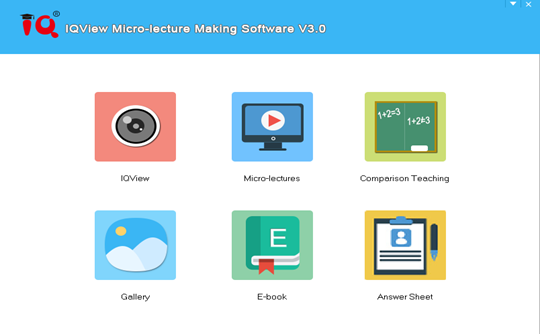

Built-in Software: Annotate directly without PC software installation and save into SD card.

document scanner

Touch Capability: Support touch operation when connected with IQTouch and IQBoard.

Model	E3511
Built-in adapter for Microscope	N/A(only available for IQView 3511 Plus)
Built-in software	Yes
Interface	HDMI IN, SD card slot, VGA IN & OUT, USB, Power supply
Digital zoom	X100
SNR	≥45db
Power supply	DC 12V 1A
Product size (mm)	185115320
Product weight	1.05kg
Interactive with IQBoard	√
Sensor	5MP
Light source	11 LEDS with softbox
Frame rate30	30fps@1920*1080
Scanning area	A4
Macro-shooting	≤5cm
Operating system	Windows XP/Vista/7/8/10
